Overview of wire EDM parts
Dongguan Jinyi Precision Technology Co., Ltd. provides wire EDM parts and custom precision machining support for international industrial buyers. The company is located in Dongguan, China, a manufacturing area with strong mold, connector, electronics and automation supply chains. For buyers in the United States, Japan, Germany, Malaysia, Singapore, the goal is not only to find a low-cost machining vendor, but to identify a supplier that can understand drawings, communicate clearly, protect confidential data, select the correct process route and deliver components that can be verified by quality engineers.
The typical buyer for this service includes mold manufacturers, connector manufacturers, automation equipment companies, precision component buyers, purchasing managers, mechanical engineers, quality engineers. These teams usually care about material selection, tolerance, lead time, inspection method, documentation and fast RFQ communication. Jinyi Precision positions its work around precision mold components, connector tooling, carbide parts, ceramic parts, wire EDM, PG profile grinding, mirror EDM and precision grinding. This process mix helps customers source difficult components that may require more than one machining method.
Application Industries
wire EDM parts are used in production systems where ordinary machined components cannot satisfy the combination of hardness, accuracy, small features and repeatability. Common industries include precision mold manufacturing, connector production, electronic component manufacturing, automation equipment, precision stamping and fixture building. Customers may request a single prototype, a small batch for validation, or repeat orders for production maintenance.
For mold manufacturers, the priority is usually fit, datum control, edge condition and stable assembly. Connector manufacturers often focus on micro profiles, punch life, burr control and dimensional consistency. Automation equipment companies may need wear-resistant locating parts, ceramic pins, custom plates or tooling inserts. Purchasing managers need quotation speed, clear lead time and reliable communication, while mechanical engineers and quality engineers need practical feedback on tolerances and inspection.
Materials
Material selection strongly affects the process route, cost and final accuracy. For this service, common material options include tungsten carbide, tool steel, stainless steel, precision mold steel, hardened steel. Some projects specify Japanese carbide or steel grades, while others allow alternative materials from Taiwan or China when cost, availability and performance targets permit. Jinyi Precision can review material options when the customer provides application information and expected service life.
When requesting a quotation, buyers should include the exact material grade whenever possible. If the material is not fixed, the RFQ should explain the part function, wear condition, contact material, required hardness, coating preference and expected production volume. This information allows the supplier to recommend whether the part should be made from carbide, steel, ceramic or another specified material. It also helps avoid inaccurate quotations caused by vague material descriptions.
Tolerance and Inspection
Tolerance is one of the most important topics for wire EDM parts. Reference capabilities for this service include oil wire EDM reference up to 0.001mm; water wire EDM projects around ±0.002mm; wire diameter range φ0.05-φ0.20; small R review based on wire diameter and material. These values should be treated as process references rather than universal promises for every feature. Actual achievable tolerance depends on material, geometry, thickness, datum design, measurement method, heat treatment and whether the part requires multiple processes.
Jinyi Precision recommends that international buyers mark critical dimensions clearly on the drawing. If only a few features are function-critical, those features should be identified. If a dimension is for reference only, it should not be treated the same as a critical assembly dimension. Clear drawings allow the engineering team to choose the right equipment, inspection method and production sequence. This reduces rework risk and improves quotation accuracy.
Equipment and Process Route

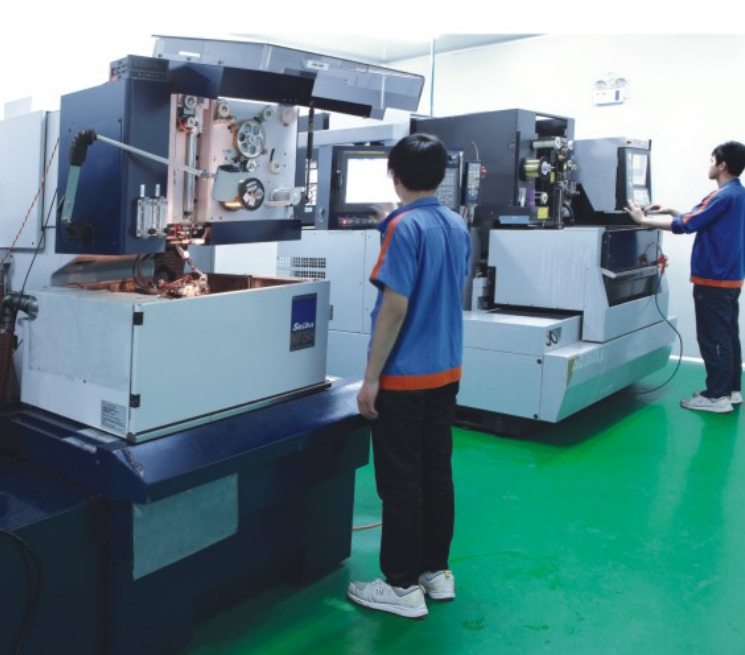

Relevant equipment for this service includes Seibu MP250S / M50A / MM50A / M50B wire EDM, Seibu M25LP oil wire EDM, AgieCharmilles CUT 2000 OilTech, CASTEK small-hole drilling. A professional supplier should not only list machines, but also explain how the equipment is used together. For many precision mold and connector components, the final route may combine rough machining, wire EDM, PG grinding, mirror EDM, precision grinding, small-hole drilling and inspection.
Process planning begins with drawing review. The team checks material, critical tolerance, machining access, thin walls, inside radii, surface roughness and inspection datums. If one process cannot safely create every feature, the job may be divided into multiple operations. For example, a mold insert may be prepared by machining, profiled by wire EDM, finished by grinding and checked by projector or height gauge. This practical planning is important for reliable overseas sourcing.
RFQ Requirements
To receive a fast and realistic quotation, buyers should provide PDF drawings and, when available, STEP, STP, DWG or DXF files. The RFQ should include material, quantity, tolerance, surface treatment, coating, heat treatment, delivery target and the intended application. If the project is confidential, Jinyi Precision can support NDA communication before detailed drawing review.
A complete RFQ helps the supplier respond within a practical timeframe. Jinyi Precision targets 24-hour RFQ response after receiving complete information. If the drawing is incomplete, the team may ask questions about material, datum, tolerance or inspection. These questions are not delays; they are part of preventing wrong assumptions. For overseas buyers, this communication is especially valuable because shipping and rework costs can be significant.
Quality Control
Quality control for wire EDM parts should be based on the drawing and the function of the component. Inspection may include optical projection, height gauge measurement, tool microscope review, surface roughness measurement, CMM measurement or other methods depending on the part. The supplier should confirm how critical dimensions will be checked before production begins.
Jinyi Precision promotes a quality-focused workflow supported by ISO9001 certification, controlled processing environment and standardized inspection thinking. For international buyers, this means the project can be discussed in terms of measurable features rather than vague quality claims. When a customer needs inspection records or special checking points, those requirements should be stated during RFQ so the team can include them in the quotation.
Overseas Buyer Support
The target markets for this website include the United States, Japan, Germany, Malaysia, Singapore. Buyers from these regions often require clear English communication, drawing confidentiality, fast RFQ response and stable export communication. Jinyi Precision supports overseas inquiries by email and WhatsApp, making it easier for purchasing managers and engineers to clarify drawings, materials and delivery expectations.
International sourcing is not only a price comparison exercise. A reliable supplier should explain manufacturing feasibility, identify risks, confirm inspection methods and communicate quickly when something in the drawing is unclear. This is especially important for mold components, connector tooling and automation parts where one small tolerance issue can affect assembly or production uptime.
Case Study
Wire EDM Mold Insert - Market: Precision Mold Industry. Challenge: The insert required complex contours, small inside radii and hole-position control that had to match the customer mold assembly. Solution: The team reviewed datum references, wire diameter, cutting path, relief areas and inspection method before machining the insert by wire EDM. Result: The buyer received a repeatable mold insert that could be assembled and measured against the drawing without unclear process assumptions.
This type of case is common in B2B precision manufacturing because buyers are not simply purchasing a shape. They are purchasing a functional component that must fit into a tool, fixture, machine or inspection system. The value of the supplier is measured by drawing understanding, process selection, communication and the ability to deliver parts that can be checked against agreed requirements.
